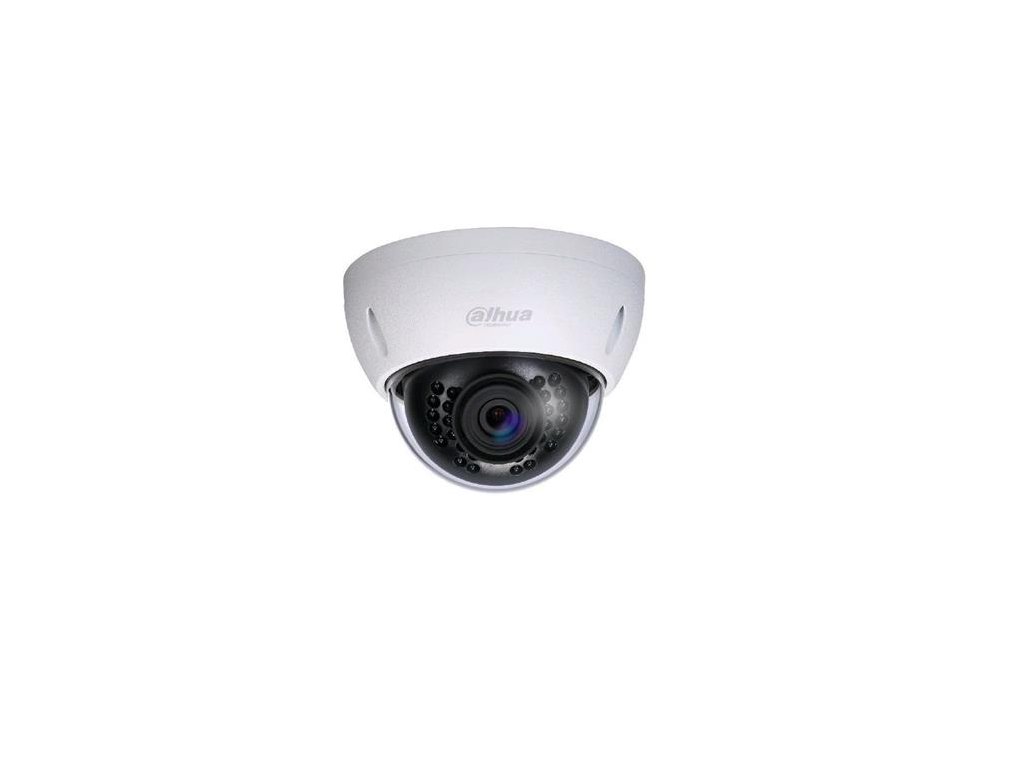

Kamera Dahua IPC-HDBW4800EP
Kód: 465Související produkty
Detailní popis produktu
PC-HDBW4800EP rozlišení 4K8MPx s IR přísvitem a objektivem 4mm
4K 8 MPx 4K IP kamera dome exteriérová barevná Day/Night smechanickým IR filtrem, IR dosvit do 20m, 1/ 2,3" progressive scanCMOS, maximální rozlišení 3840x2160 px @ 7fps, citlivost barevná0.1Lux/F1.6, 0Lux /F1.8(IR LED), objektiv 4 mm, úhel záběru 80°,komprese H264/MJPEG, duální kódování, DWDR, 3DNR, BLC, HLC, ONVIF,napájení 12VDC, 600mA, PoE, IP66, IK10, rozměry 110x81mm, hmotnost0,4 kg
>1/2.3” 4K progressive scan CMOS
>H.264&MJPEG dual-stream encoding
>15fps@4K(3840×2160)
>DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) &DMSS
>4mm fixed lens
>Max. IR LEDs Length 20m
>IP66, IK10, PoE
| Model | IPC-HDBW4800E | |
| Camera | ||
| Image Sensor | 1/2.3” 4Kprogressive scan CMOS | |
| Effective Pixels | 3840(H)x2160(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual,1/3(4)~1/10000s | |
| Min. Illumination | 0. 1Lux/F1.6 (Color),0Lux/F1.8(IR on) | |
| S/N Ratio | More than 50dB | |
| Video Output | N/A | |
| Camera Features | ||
| Max. IR LEDs Length | 20m | |
| Day/Night | Auto(ICR)/Color/B/W | |
| Backlight Compensation | BLC / HLC /DWDR | |
| White Balance | Auto/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 4 areas | |
| Lens | ||
| Focal Length | 4mm | |
| Max Aperture | F1.6(F1.6) | |
| Focus Control | Manual | |
| Angle of View | H: 80° | |
| Lens Type | Fixed lens | |
| Mount Type | Board-in Type | |
| Video | ||
| Compression | H.264/ MJPEG | |
| Resolution | 4K(3840×2160)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) | |
| Frame Rate | Main Stream | 4K(1~15fps)/3M/1080P/ (1 ~ 25/30fps) |
| Sub Stream | D1/CIF(1 ~25/30fps) | |
| Bit Rate | H.264: 20K ~16Mbps | |
| Audio | ||
| Compression | N/A | |
| Interface | N/A | |
| Network | ||
| Ethernet | RJ-45(10/100Base-T) | |
| Wi-Fi | N/A | |
| Protocol | IPv4/IPv6, HTTP,HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP,NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour | |
| Compatibility | ONVIF, PSIA,CGI | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad,Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | N/A | |
| RS485 | N/A | |
| Alarm | N/A | |
| PIR Sensor Range | N/A | |
| General | ||
| Power Supply | DC12V, PoE(802.3af) | |
| Power Consumption | <7W | |
| Working Environment | -30°C~+60°C, Lessthan 95% RH | |
| Ingress Protection | IP66 | |
| Vandal Resistance | IK10 | |
| Dimensions | ?110mm×81mm | |
| Weight | 406g(531.8g withpackaging) | |
Doplňkové parametry
| Kategorie: | DAHUA |
|---|---|
| Záruka: | 3 roky |
